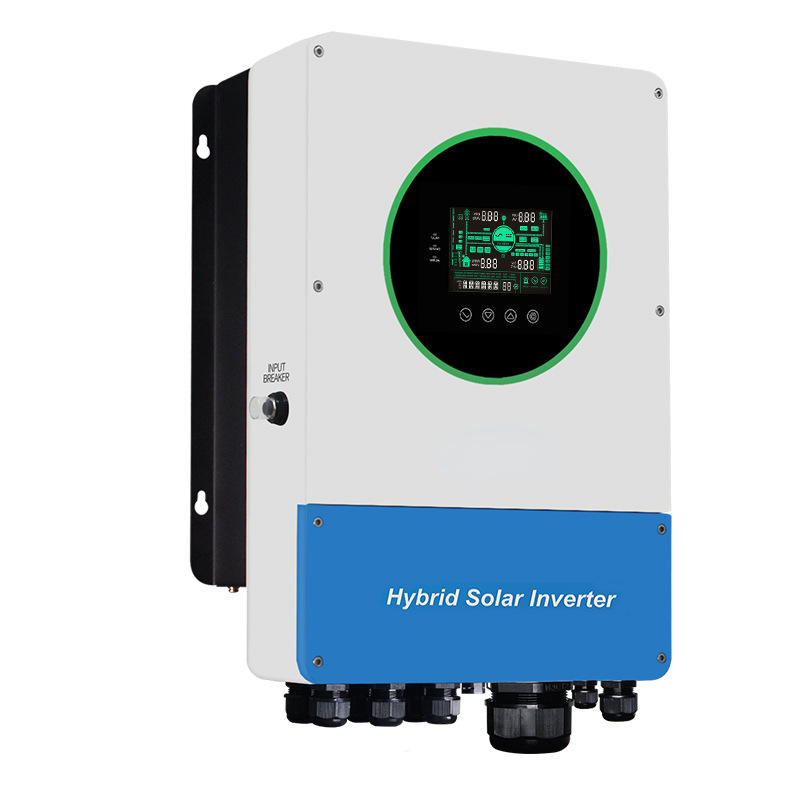

EASUN POWER IP65 Solar Inverter 6KW 450Vdc PV 100A MPPT Parallel Inverter 230V 48V Pure Sine Wave Hybrid Inverter Battery Charger
· Efficiently work with or without battery
· MPPT Solar Charge Controller up to 6000W solar panel
· Built – in Wifi for mobile monitoring (Requires APP)
· Compatible with (Li-ion,LiFePo4 and etc.) batteries
· Battery Equalization
| Model | IGrid-SX-WP-6KW-Wifi |
| Battery Input | |
| Battery type | Lead-acid / Li-ion / User Defined |
| Rated Battery Input Voltage | 48V ( Minimum Startup Voltage 44V) |
| Hybrid Charging Maximum Charging Current |
100A |
| Battery Voltage Range | 40Vdc~60Vdc ± 0.6Vdc(Undervoltage Warning/Shutdown Voltage/ Overvoltage Warning/Overvoltage Recovery…) |
| Solar Input | |
| Maximum PV Open-circuit Voltage | 500Vdc |
| PV Working Voltage Range | 120-500Vdc |
| MPPT Voltage Range | 120-450Vdc |
| Maximum PV Input Current | 22A |
| Maximum PV Input Power | 6600W |
| Maximum PV Charging Current | 100A |
| AC Input（generator/grid） | |
| Mains Maximum Charging Current | 60A |
| Rated Input Voltage | 220/230Vac |
| Input Voltage Range | UPS Mains Mode：(170Vac~280Vac)土2%Trending APL Generator Mode：(90Vac~280Vac)±2% |
| Frequency | 50Hz/ 60Hz (Automatic Detection) |
| Mains Charging Efficiency | >95% |
| Switch Time (bypass and inverter) | 10ms(Typical Value) |
| Maximum Bypass Overload Current | 40A |
| AC Output（Backup power） | |
| Output Voltage Waveform | Pure Sine Wave |
| Rated Output Voltage (Vac) | 230Vac |
| Rated Output Power (VA) | 6000 |
| Rated Output Power(W) | 6000 |
| Peak Power | 12000VA |
| On-load Motor Capacity | 4HP |
| Output Frequency Range(Hz) | 50Hz±0.3Hz/60Hz±0.3Hz |
| Maximum Efficiency | >90% |
| No-load Loss | No Energy-saving Mode: ≤50W Energy-saving Mode：≤25W (Manual Setup） |
| General | |
| Certificate | CE(IEC62109-1) |
| EMC Certification Level | EN61000 |
| Working Temperature Range | -25°C ~ 55°C |
| Storage Temperature Range | -25°C ~ 60°C |
| Humidity Range | 0% to 100% |
| Waterpro of Gade | IP65 |
| Dimensions | 26mm*322mm*124mm |
| Weight (KG) | 19.2 |
